Excavator travel motor assy 306 341-7668 final drive 3417668 hydraulic drive
| Application | Excavator |
| Part name | Travel motor assy |
| Material | Steel |
| Model | E306 306 341-7668 |
| MOQ | 1PC |
| Warranty | 1 Year |
| Payment term | T/T, Western Union |
| Delivery | 3-15 days |
| Shipment | by sea, by air, by express |

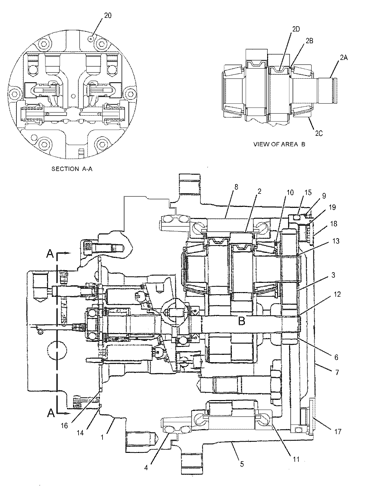

CATERPILLAR SIS
| Pos. | Part No | Qty | Parts name | Comments |
| 1. | 338-0180 | [1] | KIT-SPINDLE (TRAVEL MOTOR) | |
| | | | (INCLUDES SPINDLE AS & BOLTS) |
| 2. | 198-5010 | [1] | GEAR AS | |
| 2A. | 171-9334 | [2] | SHAFT | |
| 2B. | 7I-2317 | [4] | SPACER (28.5X47X1.6-MM THK) | |
| 2C. | 198-5012 | [4] | BEARING | |
| 2D. | 171-9336 | [4] | BEARING | |
| 3. | 198-5014 | [1] | KIT-GEAR (TRAVEL MOTOR) | |
| | | | (INCLUDE GEARS) |
| 4. | 198-5020 | [1] | KIT-SEAL (TRAVEL MOTOR) | |
| | | | (INCLUDE SEALS) |
| 5. | 198-5005 | [1] | HUB | |
| 6. | 198-5013 | [1] | GEAR (14-TEETH)(14-TEETH) | |
| 7. | 198-5016 | [1] | COVER | |
| 8. | 198-5017 | [28] | PIN | |
| 9. | | [1] | RING |
| 10. | 099-6521 B | [2] | SHIM (1.9-MM THK) | |
| | 099-6522 B | [2] | SHIM (1.95-MM THK) | |
| | 099-6523 B | [2] | SHIM (2-MM THK) | |
| | 099-6524 B | [2] | SHIM (2.05-MM THK) | |
| | 099-6543 B | [2] | SHIM (2.1-MM THK) | |
| | 099-6544 B | [2] | SHIM (2.15-MM THK) | |
| | 099-6545 B | [2] | SHIM (2.2-MM THK) | |
| | 099-6546 B | [2] | SHIM (2.25-MM THK) | |
| | 099-6547 B | [2] | SHIM (2.3-MM THK) | |
| | 099-6548 B | [2] | SHIM (2.35-MM THK) | |
| | 099-6549 B | [2] | SHIM (2.4-MM THK) | |
| | 099-6550 B | [2] | SHIM (2.45-MM THK) | |
| 11. | 198-5018 | [2] | BEARING | |
| 12. | 154-7892 | [1] | RING | |
| 13. | 6V-8754 | [4] | RING-RETAINING | |
| 14. | 095-1575 | [1] | SEAL-O-RING | |
| 15. | 095-1689 | [1] | SEAL-O-RING | |
| 16. | 5F-3999 | [1] | SEAL-O-RING | |
| 17. | 171-9342 | [1] | PLUG | |
| 18. | 198-5022 | [2] | PLUG | |
| 19. | 095-1582 | [3] | SEAL-O-RING | |
| 20. | 154-7860 | [2] | PIN | |
| | B | | USE AS REQUIRED |
FAQ
Q. Which countries have you exported?
A :ASIA: Iraq, UAE, Thailand, Malaysia, Indonesia, Vietnam, Bangladesh, Kuwait, Lebanon
EUROPE: Russia, Kazakhstan, Greece, Norway, Ireland
OCEANIA: Australia, Fiji, Kiribati, New Caledonia
AMERICAS: USA, Canada, Jamaica, Brazil, Peru, Chile,
AFRICA: Angola, South Africa, Kenya, Tanzania, Zambia, Sudan, South Sudan, Egypt, Algeri, Nigeria
Q: How to guarantee your service?
A :Strict inspection during production,before shipping. And we will Track and receive feedback from customer regularly
Q: What will you do for quality complaint ?
A :We will respond to customer and give a solution within 24 hours.
Q: How can I know the status of my order?
A :We will keep you udpated about the process
Product Tags:
|
|
T341 7668 Travel Gearbox Drive Motor Steel 64KG Excavator Final Drive Images
|
